Voltage drop is one of those “quiet” compliance checks that can quietly turn into a defect notice if we do not design and verify it. In most Australian installations, the allowable ceiling is 5% from the point of supply to the furthest point, and we need to manage it across consumers mains, submains, and final circuits.
Key Takeaways
| Topic | Practical Victorian design meaning |
|---|---|
| Max voltage drop (most circuits) | 5% total is the common regulatory ceiling under AS/NZS 3000 (Clause 3.6) for typical installations. |
| Final sub-circuits | Allocate up to 3% to final sub-circuits so the overall path stays inside the total limit. |
| Dedicated substation case | If the point of supply is a dedicated low voltage substation on premises, permissible drop can increase to 7% under AS/NZS 3000. |
| Lighting design allowance | We often limit lighting branch drop to 3% to avoid visible dimming during operation. |
| Design inputs matter | Ambient temperature and loading assumptions can underestimate voltage drop in practice by a meaningful margin. |
| Get cables right first | Cable selection drives the result, so we start with correct conductor material, size, installation method, and derating. |
- Design target (most jobs): keep the total voltage drop to 5% and allocate 3% to final sub-circuits.
- Compliance scope: AS/NZS 3000 Clause 3.6 governs the maximum permissible voltage drop from point of supply to furthest point for most installation types.
- Worked calculations: we verify using conductor resistance at operating conditions, not just “nameplate” assumptions.
- Victorian delivery reality: when we plan cable runs and loads early, we reduce rework and on-site substitution problems.
- Local supplier support: for cable and installation method choices that affect voltage drop calculations, we work with clients through our cable selection guide for projects in Victoria.
Common question: “What is the maximum voltage drop allowed in Australian electrical installations?” In practice, the answer is 5% total for most installations, with 3% typically applied to final sub-circuits to keep the whole design inside the AS/NZS 3000 limits.

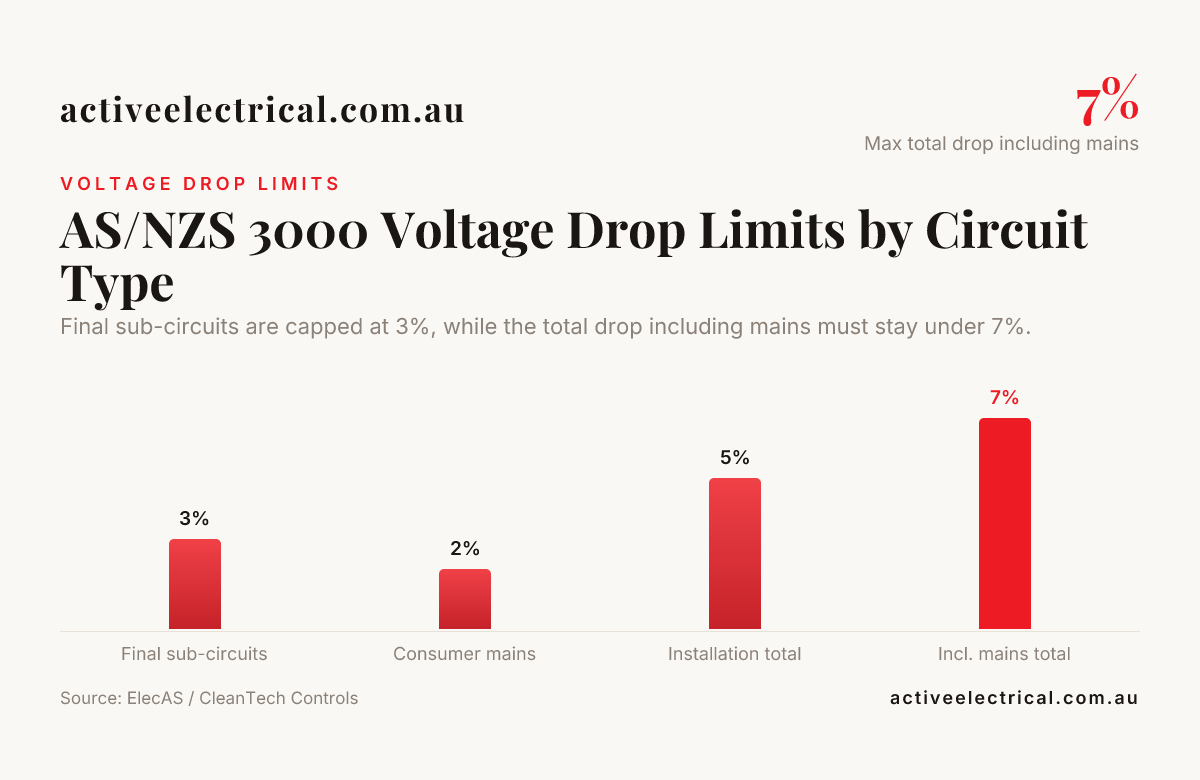

Final sub-circuits are capped at 3%, while the total drop including mains must stay under 7%.
Why voltage drop limits exist (and what inspectors expect in Victoria)
Voltage drop limits in AS/NZS 3000 are not just a “numbers exercise”. They exist to ensure that equipment operates within acceptable voltage tolerance, that performance is not degraded, and that fault protection and control systems remain effective under real operating conditions.
In Victoria, we still design to the national standard, but we have to be ready for the practical scrutiny that comes with commissioning, variation control, and Evidence of Compliance expectations. Energy Safe Victoria (ESV) focuses on safety outcomes, and voltage drop is tightly linked to operational performance and end-circuit reliability.
When we get voltage drop wrong in 2026, the usual pattern is not a complete failure of protection, it is a latent problem that only shows up as nuisance faults, overheating symptoms, lights that appear dull, or complaints about motors and control gear stability. That is why we treat voltage drop calculations as part of our deliverables, not an afterthought.
Maximum voltage drop allowed in Australian electrical installations: the AS/NZS 3000 headline limits
For the question What is the maximum voltage drop allowed in Australian electrical installations? the core answer we design to in 2026 is based on AS/NZS 3000 Clause 3.6. In most common LV distribution arrangements, the ceiling is 5% from the point of supply to the furthest point on the circuit.
1) The typical 5% total limit
Under AS/NZS 3000 Clause 3.6, the maximum voltage drop from the point of supply to the furthest point in most Australian electrical installations is 5%. This is the limit we plan around for consumers mains, submains, and final circuits together.
2) Final sub-circuits are commonly treated as 3%
In most installation designs, we allocate a tighter internal budget to final sub-circuits so the total stays compliant. A commonly applied design ceiling for the final sub-circuit allocation is 3%, leaving headroom for consumers mains and submains.
3) Dedicated low voltage substation on premises can allow higher total drop
Where the point of supply is a dedicated low voltage substation located on the premises, AS/NZS 3000 allows an increased permissible total voltage drop of 7%. This is a site-configuration issue, so we verify the “point of supply” definition for the project before applying the limit.
Worked example: verifying the 5% (and 3% final) allocation for a long final circuit
To answer What is the maximum voltage drop allowed in Australian electrical installations? correctly, we also need to show how we prove compliance with numbers, because the standard’s limits are only half the work. The other half is the calculation with correct conductor data and installation conditions.
Assumptions (typical single-phase final circuit)
- Nominal supply: 230 V
- Target: total voltage drop ≤ 5% (and final sub-circuit allocation ≤ 3%)
- Circuit: single-phase 230 V, length of run (out and return): 50 m (use actual route length in your design model)
- Load current (design): 20 A
- Conductor resistance at operating conditions: R = 0.33 Ω/km (example value, replace with actual datasheet value and temperature correction)
Step 1: convert length
- Conductor length in km: 50 m = 0.05 km
Step 2: calculate voltage drop (single-phase)
- Vd = I × R × L (use the standard method for the circuit type, including appropriate factor for single-phase loop where applicable)
- Vd = 20 A × 0.33 Ω/km × 0.05 km = 0.33 V (example)
Step 3: convert to percentage
- Voltage drop % = (0.33 V / 230 V) × 100 = 0.14%
Step 4: interpret against AS/NZS 3000 allocations
- Final sub-circuit allocation: 0.14% (well under the common 3% cap)
- Total including mains and submains: we must add the consumers mains and submains drops to confirm we stay under the overall 5% limit
Trade reality note (2026): the biggest design errors typically come from using incorrect circuit current (load diversity or duty cycle), using a cable resistance value at the wrong temperature, or ignoring derating for installation environment. For those reasons, we always coordinate cable selection and installation method early.
How to calculate voltage drop in practice for Victorian projects (what to include)
In real projects, What is the maximum voltage drop allowed in Australian electrical installations? becomes meaningless if we omit key contributors from the calculation. In 2026, we treat voltage drop verification as an engineering check, not a spreadsheet formality.
Inputs we verify every time
- Route length: use installed cable route lengths, not “as the crow flies” estimates.
- Design current: confirm load current, diversity, and any intermittent duty assumptions used for the calculation basis.
- Conductor type and size: material (Cu or Al), cross-sectional area, and number of conductors in the circuit.
- Installation method: clipped direct, in conduit, in tray, buried, insulation type, grouping, and ambient conditions.
- Derating factors: temperature/insulation, grouping, and any thermal constraints that alter effective resistance.
- Circuit type: single-phase, three-phase, and any special configurations that change calculation method.
Where people commonly go wrong
- Using room temperature assumptions when the cable operates hotter in the actual environment.
- Forgetting return path impacts for single-phase circuits (loop impedance concepts).
- Ignoring upstream drops so the final circuit “fits” but the whole installation exceeds the 5% limit.
- Not confirming “point of supply” meaning when a dedicated low voltage substation is involved (where the ceiling may be 7%).
For cable selection that feeds these calculations, we often reference our practical guide on choosing the right electrical cables for your project in Victoria, because conductor resistance and derating come back to installation choices.
Lighting, motors, and solar loads: special cases that affect voltage drop design
Not every circuit behaves the same way, and that is why the industry breaks the problem down by circuit type. When you ask What is the maximum voltage drop allowed in Australian electrical installations?, you also need to ask which parts of the system you are designing, because the compliance intent is different.
Lighting circuits
For lighting branch design, voltage drop is often limited to 3% to prevent perceptible dimming and maintain consistent illumination. This is a design allocation approach aligned with AS/NZS 3000 guidance for limiting voltage drop where voltage sensitivity shows up as visible performance issues.
Motor starting and transient impacts
Motors introduce starting currents that can reach 5 to 7 times full-load current. Even if the steady-state voltage drop is acceptable, the transient drop during starting can affect performance and protection coordination. In practice, we evaluate starting conditions as part of a “whole installation” compliance mindset.
Solar inverter voltage rise and drop interactions (grid-connected)
Where grid-connected solar inverters are involved, AS/NZS standards address voltage rise and drop constraints at the inverter terminals. For example, under AS/NZS 4777.1, grid-connected solar inverters are limited to a maximum voltage rise of 2% from the point of supply to the inverter terminals. That matters because it can interact with how we assess compliance for the upstream LV network under real operating conditions in 2026.
Where 2026 design practice is heading: tighter assumptions and better evidence
In 2026, most contractors and RECs are moving toward better evidence packages because the gap between “calculated” and “installed” voltage drop has become easier to audit. We are also seeing more projects demand explicit calculation summaries rather than relying on “industry typical” assumptions.
That means our workflow is increasingly structured:
- Early cable schedule freeze: we lock the conductor size and installation method before route changes create mismatch.
- Clear allocation logic: we document how we allocate the overall 5% ceiling across consumers mains, submains, and final circuits, including the common 3% final allocation.
- Temperature-aware resistance assumptions: we use operating conditions and derating inputs that reflect how the cable will actually be installed.
- Commissioning handover readiness: our voltage drop calculations are ready for documentation review and commissioning sign-off.
For 230 V single-phase, the “11.5 V” ceiling helps us sanity-check results quickly, but we still verify with the actual conductor and installation conditions. We treat this as a cross-check, not a substitute for a full calculation.
Using Active Electrical Distributors to reduce voltage-drop rework (Victoria, 2026)
Voltage drop compliance is directly linked to cable choice, installation method, and correct conductor performance. That is why we make cable selection efficient through Active Electrical Distributors, with trade-focused support and availability across Victoria.
Where projects run tight, we help prevent the “late change” scenario where a cable substitution reduces cross-sectional area or changes installation conditions. Those changes can push a circuit over the maximum voltage drop thresholds under AS/NZS 3000, and that can trigger redesign and rework.
To streamline the supply side of voltage-drop compliant designs, we often start with the cable selection decisions covered in our Victoria cable selection guidance, then align the schedule with a distributor workflow that supports contractor speed across sites and branches.
For broader delivery and technical support, we also support clients through our service approach at Electrical Supply & Services, which is designed for project delivery, not just counter sales.
Conclusion: answering what is the maximum voltage drop allowed in Australian electrical installations
What is the maximum voltage drop allowed in Australian electrical installations? In most typical LV installations designed under AS/NZS 3000, the maximum allowable total voltage drop from the point of supply to the furthest point is 5%. We usually allocate up to 3% to final sub-circuits to keep the overall consumers mains plus submains plus final circuit path compliant, and in cases where the point of supply is a dedicated low voltage substation on premises, AS/NZS 3000 can allow a higher permissible total drop of 7%.
For successful outcomes in 2026, we recommend treating voltage drop calculations as a documented engineering deliverable, using installed route lengths, correct design currents, and temperature-aware conductor resistance inputs. When cable selection and supply planning are aligned early, we reduce the chance of exceeding AS/NZS 3000 limits and improve commissioning confidence for Victorian projects.
Frequently Asked Questions
What is the maximum voltage drop allowed in Australian electrical installations for most circuits?
For typical installations under AS/NZS 3000, the maximum total voltage drop from the point of supply to the furthest point is 5%. That ceiling is what we plan to, while commonly allocating up to 3% to final sub-circuits so the total remains compliant.
Is the final sub-circuit voltage drop limit always 3% in Australia?
In practice, 3% is the commonly used final sub-circuit allocation to ensure the entire circuit stays under the overall AS/NZS 3000 limit. The “must” value depends on the overall installation calculation and allocation method, but 3% is the value many teams use for a compliant design budget.
If my site has a dedicated low voltage substation, can the voltage drop limit be higher?
Yes. When the point of supply is a dedicated low voltage substation located on the premises, AS/NZS 3000 allows the permissible total voltage drop to increase to 7%. We confirm the “point of supply” definition for the project before applying the higher limit.
What voltage drop limit should we use for lighting circuits in Victorian projects in 2026?
Lighting circuits are commonly limited to 3% voltage drop as a design allocation to avoid visible dimming and performance issues. Even when the overall AS/NZS 3000 ceiling is higher, allocating lighting drop conservatively helps keep the end-user experience and equipment operation stable.
How do we calculate voltage drop to prove compliance with AS/NZS 3000?
We calculate conductor voltage drop using installed route length, the actual design current, conductor resistance corrected for operating conditions, and derating factors based on the installation environment. We then sum the voltage drops across the relevant segments to confirm the design stays under the maximum limits for the installation.
Why do voltage drop calculations sometimes fail on site even when the spreadsheet “passes”?
Most failures come from mismatch between assumed and installed conditions, especially temperature, grouping, route length, and actual load current. In 2026, using realistic operating assumptions is critical, because using simplified ambient assumptions can materially underestimate the true voltage drop.
Does solar affect voltage drop compliance under Australian standards?
Solar installations interact with LV network voltage constraints, and standards address voltage rise and associated terminal limits for inverter connections. For example, AS/NZS 4777.1 limits grid-connected solar inverter voltage rise to 2% from the point of supply, which must be considered alongside voltage drop verification for the broader installation.
