In Victoria, project cost and electrical performance often turn on a single decision, and three-phase can draw dramatically less current per conductor for the same delivered power, which is why it is such a common outcome in commercial builds. If you are working out whether to specify single phase vs 3 phase for an EV charger, HVAC, motors, solar, or a new main switchboard in 2026, this is the practical comparison we use on the job.

Key Takeaways

• Power delivery: three-phase generally gives higher total power capacity on the same supply current rating, which matters for plant and EV charging.
• Design outcomes: motors above 2.2 kW commonly align with three-phase due to torque and self-starting considerations.
• Voltage and wiring: you still see 230 to 240 V per phase, but the system uses 400 V line voltage between phases, which impacts equipment selection.
• Regulatory coordination: your final selection must match Victorian connection requirements and switchboard protection practices reviewed by the relevant parties.
• Supply chain: we can help you kit out 1P or 3P switchboard components faster when you plan early with Active Electrical Distributors for supply and project support.
• Site mobilisation: get local branch knowledge across Victoria via our Moorabbin location or other branches, so your parts are matched to the build schedule.

Single phase vs 3 phase power in Australia, at a glance (what changes in the real world?)

The key difference in what is the difference between single phase and 3 phase power in Australia? comes down to the number of “phases” supplied by the network and how the electrical loads share current over time.

With single-phase (1P) power, you effectively have one active conductor and a neutral at the utilisation end. In typical Australian installations, equipment connected to single-phase operates at around 230 to 240 V between active and neutral.

With three-phase (3P) power, you have three active conductors that are time-shifted, so the load sees a steadier combined power delivery. In Australia this system uses 400 V between phases (line voltage) and 230 to 240 V per phase to neutral when neutral is present.

In practice, this means the same installation current rating can produce different usable output depending on how you distribute the loads across phases, and it drives decisions about switchboard layout, cable sizing, and equipment selection.

Voltage and wiring differences you must specify correctly in Victorian designs

When we are asked what is the difference between single phase and 3 phase power in Australia?, the voltage and wiring answer is the one that impacts your drawings immediately.

Single phase voltage reference

• 230 to 240 V nominal between active and neutral for the loads you connect.
• Typical loads include lighting circuits, domestic style socket circuits, and many smaller commercial supplies where capacity needs are limited.

Three-phase voltage reference

• 400 V between phases (line voltage).
• 230 to 240 V per phase to neutral when neutral exists in the installation.
• Phase separation is typically 120 degrees apart, which is why the supply supports balanced three-phase motor operation and reduces fluctuations when loads are distributed correctly.

This is also why you cannot treat “three phase” as simply “more volts.” You select the correct equipment ratings, protective devices, and wiring segregation, then verify phase balance and fault protection arrangements during commissioning.

Current draw and cable sizing: why 3 phase can reduce conductor current

The electrical design consequence is that the same delivered power does not require the same conductor current once you move from 1P to 3P delivery.

For equal delivered power and voltage, a three-phase system draws only 57.7% of the current per conductor compared to single-phase. This is why, in the right load and routing scenario, three-phase can be a practical route to smaller conductors and reduced losses, particularly in Victorian commercial and industrial distribution runs.

On the tools, that usually shows up as fewer cable parallel runs, reduced voltage drop pressure along long feeders, and a clearer path to meeting thermal limits. But we still size conductors based on your load schedule, diversity, ambient conditions, installation method, and protective-device coordination, not by “rule of thumb” alone.

Applications: when 3 phase is clearly the better fit in 2026

For real sites, the answer to what is the difference between single phase and 3 phase power in Australia? becomes obvious when you match supply type to the load pattern.

EV charging infrastructure (fast charging capacity)

If you are scoping a fast EV charger, three-phase often changes what is feasible within a given circuit rating. A 32-amp single-phase circuit provides approximately 7.36 kW, while the same 32-amp circuit in a three-phase configuration can deliver up to 22 kW, which is why three-phase is commonly specified for commercial charging.

Motors and plant

• Three-phase power is typically the default engineering standard for motors above 2.2 kW due to self-starting capability and more constant torque delivery.
• Where you have compressors, pumps, conveyors, or HVAC fan systems with higher rated power, 3P reduces the operational limitations you can see on 1P motor start and steady-state loading.

Large HVAC and commercial loads

In multi-load commercial sites, 3P helps you distribute load across phases for better balance. That usually improves thermal performance and reduces the chance of one phase being overloaded while others remain lightly loaded.

Conversely, if the building has mostly low power loads with limited motor utilisation, single-phase may still be adequate, especially where the client’s budget and connection capacity are capped.

Cost and upgrade requirements: how 1P to 3P impacts Victorian projects

We treat this as a commercial decision, because the cost difference between installing or upgrading single phase vs 3 phase shows up in both network works and switchboard scope.

Budget planning is often the sticking point for project managers, and three-phase upgrades can involve distributor or infrastructure requirements depending on existing capacity and the distance from supply infrastructure. A practical industry budgeting range we use is $4,000 to $6,500 for a three-phase power installation, depending on the property’s distance from existing infrastructure.

Switchboard and protective device implications

• Three-phase supplies may require an updated main switchboard design, including appropriate main switch, busbar ratings, and protective coordination.
• Subcircuits must be arranged so each outgoing circuit is fed from the correct phase set and protected at the correct rating.
• Where loads include single-phase appliances on a 3P supply, we must manage neutral loading and phase balance.

Connection process and compliance coordination

In Victoria, you also need to coordinate with the distributor, align documentation, and ensure the installation is verified and certified appropriately under the Victorian framework. In our day-to-day work, we find the fastest outcomes come when the supply type is locked early, then the electrician builds the switchboard and protection design to match, rather than trying to “fit” after the fact.

If you are planning the electrical supply part of a job across Victoria, we can support your kit list and delivery scheduling through Active Electrical Distributors, including project support for contractors and businesses.

Solar and export limits: how phase choice affects what you can install in Victoria

Solar is where what is the difference between single phase and 3 phase power in Australia? becomes visible to end users and installers alike.

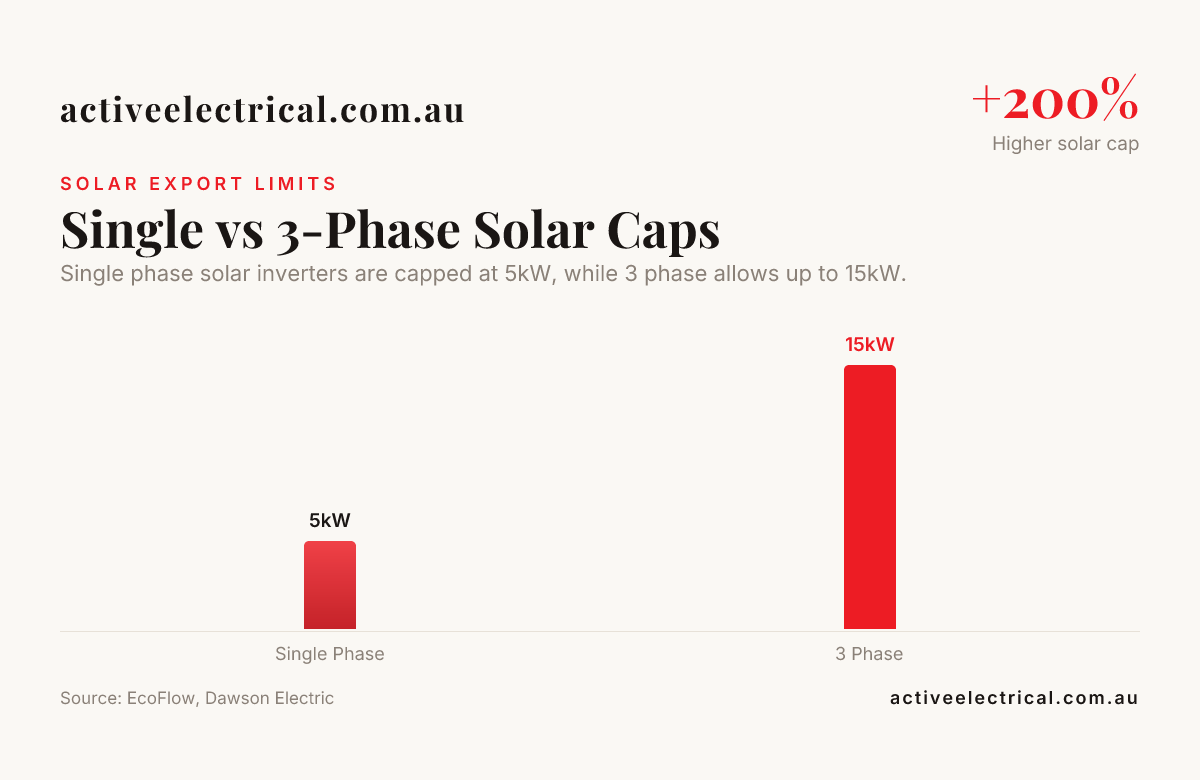

Many distribution network service providers (DNSPs) in Australia apply strict 5kW solar export caps on single-phase homes to prevent local voltage spikes. In 2026, that cap still drives engineering decisions about whether the property should be connected or upgraded to three-phase so you can support bigger PV systems without creating nuisance exports.

Upgrading to three-phase power can allow Victorian properties to install larger solar systems, up to 15kW, because the export limitations that often constrain single-phase connections do not apply in the same way to three-phase configurations.

From an electrical contracting perspective, the phase decision affects:

• Inverter selection (single-phase vs three-phase inverter families).
• Design of the AC isolators, protective devices, and earthing arrangements.
• Switchboard space planning for PV isolation and monitoring interfaces.

Choosing between 1P and 3P for a real Victorian job: our practical checklist

If you need to make the decision quickly for a tender, client proposal, or site meeting, we recommend working through a structured checklist. This also keeps your documentation tight when you are preparing for certification and handover.

1) List the loads and the future loads

• Identify motors, compressors, pumps, and HVAC plant, plus their start method and rated power.
• Account for EV chargers and any planned expansion in charging throughput.
• Confirm whether solar is in scope now or later.

2) Define the balance strategy (especially for 3P)

• For 3P, plan how single-phase circuits will be split across phases.
• Confirm neutral loading and phase balance requirements in your switchboard schedule.

3) Model voltage drop and thermal limits

• Use your actual cable route lengths, installation method, and ambient conditions.
• Apply correct protection coordination so the supply type does not introduce unwanted nuisance tripping or thermal stress.

4) Confirm connection feasibility and upgrade path

• Check whether the site already has three-phase availability at the point of supply.
• If not, include distributor lead times and potential service upgrade scope in the project program.

5) Commit to a supply-first kit list

Once the supply type is confirmed, we build the rest of the kit list around it so we do not lose time on rework. For Victorian contractors, that is where fast local supply matters, and it is why teams often work with Active Electrical Distributors for delivery logistics and project support.

Conclusion

The direct answer to what is the difference between single phase and 3 phase power in Australia? is that single-phase typically uses 230 to 240 V at one active and neutral, while three-phase provides 400 V line voltage with steadier power delivery and typically lower current per conductor for the same delivered power.

In 2026, we see three-phase become the preferred solution whenever you are dealing with higher power density, motors, fast EV charging, or larger solar systems, while single-phase remains suitable where loads are smaller and connection constraints apply. If you want to minimise rework, we lock the supply type early, then build the switchboard design, protective coordination, and load distribution plan around that decision, with Victorian trade support from Active Electrical Distributors when you need fast, practical product and delivery input.

Frequently Asked Questions

What is the difference between single phase and 3 phase power in Australia for commercial buildings?

The difference between single phase and 3 phase power in Australia for commercial buildings is primarily the power delivery method and capacity. Three-phase typically supports heavier loads like motors and larger HVAC, with lower current per conductor for equivalent delivered power, which can simplify cable sizing and reduce thermal stress.

Can I run the same appliances on 3 phase instead of single phase?

Yes, many appliances can run on 3-phase supplies if they are connected to the correct phase and are rated for the available voltage. The difference between single phase and 3 phase power in Australia matters most at the circuit and switchboard level, especially for protection, phase balance, and neutral loading.

How much extra does it cost to upgrade to 3 phase in Victoria in 2026?

A practical budgeting range is $4,000 to $6,500 for a three-phase power installation, depending on the distance from existing infrastructure. When comparing single phase vs 3 phase power decisions in Victoria in 2026, we also include switchboard changes and coordinating the connection process.

Is 3 phase required for fast EV chargers in Australia?

In many commercial EV charging applications, three-phase is the practical choice because it can deliver up to 22 kW from a 32-amp circuit, compared to about 7.36 kW on the equivalent single-phase circuit. That is why the difference between single phase and 3 phase power in Australia directly affects whether “fast” charging targets are achievable.

Does 3 phase allow larger solar systems than single phase in Victoria?

Yes, the difference between single phase and 3 phase power in Australia shows up in solar export limits. Single-phase homes often face 5kW export caps, while three-phase configurations can support larger systems, up to 15kW in Victorian contexts.

What should I check first when designing a new switchboard, 1P or 3P?

Start by confirming the supply type available at the point of connection and then mapping your loads, including motors, EV charging, and any PV. The difference between single phase and 3 phase power in Australia should drive your switchboard layout, circuit phase assignment, and protective coordination from day one.
