What cable size for a 20A circuit in Australia? In 2026, we still see too many designs fail on the basics, because the installer thought “it’ll be fine”, even when voltage drop or derating quietly pushes the conductor below the 20A requirement. Did you know a 1.5mm² cable is often already right on the edge, with typical installation conditions leaving it “too small” for a 20A circuit?
Key Takeaways
| Decision point | Practical rule we apply (Victoria, 2026) |
|---|---|
| Start with installation method | Use AS/NZS 3008 conductor ampacity tables then apply correction factors (grouping, ambient, insulation type, installation depth where relevant). |
| Minimum for typical 20A final circuits | For most TPS/PVC insulated copper final sub-circuits, we target 2.5mm² as the workable starting point, provided installation conditions match the table assumptions. |
| Voltage drop check (final sub-circuit) | Verify the run meets the 3% target for final sub-circuits under AS/NZS 3000, using conductor resistance and load current. |
| Derating can change the outcome | A conductor that “looks sized” can become non-compliant after derating, especially with higher ambient temperatures or heat-trapping installation. |
| Use length and route reality | Run actual lengths, include service loops and routing changes, and confirm termination points for heat and pressure. |
| Quality procurement matters | Source correctly rated cable and compliant accessories from Active Electrical Distributors so the conductor, insulation system, and sheath ratings match what your calculations assume. |
- What cable size for a 20A circuit in Australia? The practical starting answer in Victoria is usually 2.5mm², but only after AS/NZS 3008 correction factors and voltage drop checks confirm it.
- For a 20A load, we verify both ampacity under installation conditions and voltage drop so the design holds up in inspections by Energy Safe Victoria (ESV) and in COES processes where relevant.
- We build calculation discipline into our project workflow, aligned with Active Electrical Distributors FAQs on technical support and product guidance.
- When in doubt, we upsize conductor or adjust installation details rather than “hoping” derating won’t matter.
Quick answer: what cable size for a 20A circuit in Australia?
For the question What cable size for a 20A circuit in Australia? the answer we use most often for typical copper final sub-circuits in Victoria is 2.5mm².
However, the key point is that we do not stop at the label size. Under AS/NZS 3008, conductor ampacity must be confirmed for the actual installation method (for example, TPS in conduit, buried, in tray, or in insulation), and then we apply the relevant correction factors.
In practice, 1.5mm² can be declared “too small” for 20A in common conduit-based scenarios, and it is also where voltage drop becomes harder to manage on longer runs. That is why 2.5mm² remains the default trade choice when designing 20A finals in 2026, as long as the installation conditions match the basis of the table values.

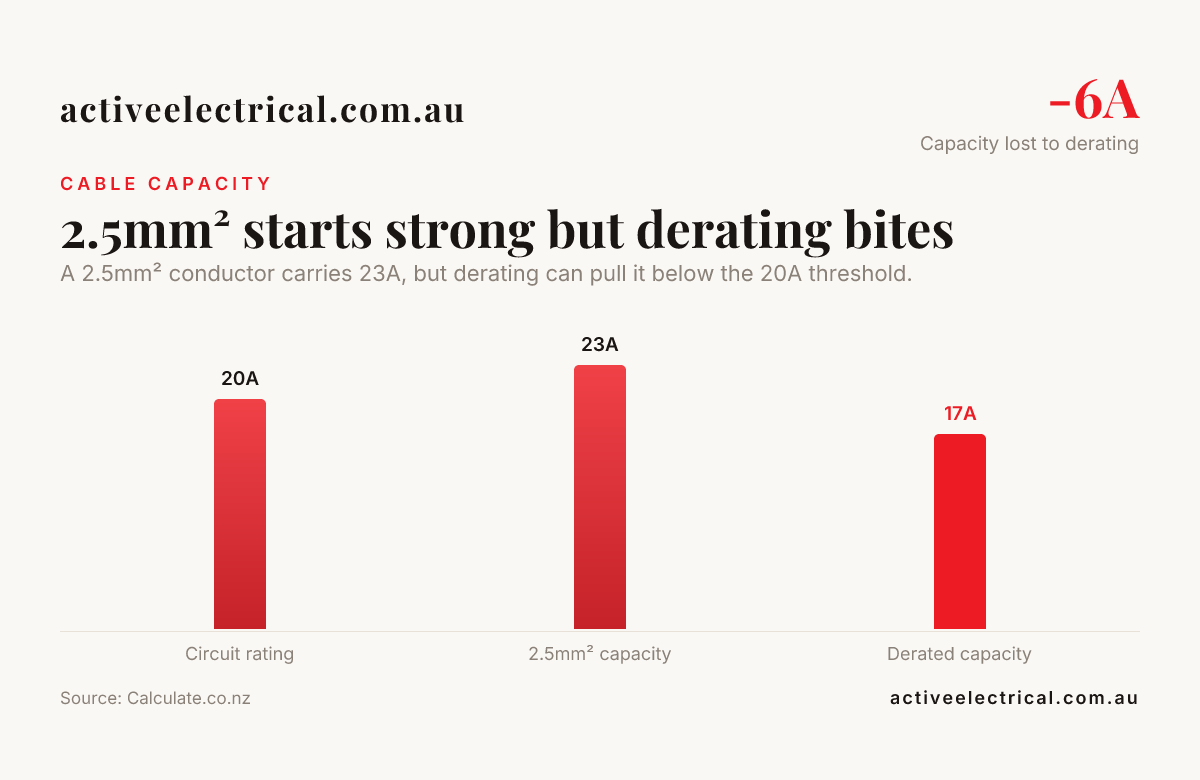

A 2.5mm² conductor carries 23A, but derating can pull it below the 20A threshold.
AS/NZS 3008 method: ampacity first, then correction factors
When someone asks What cable size for a 20A circuit in Australia?, we treat it as two checks: ampacity and voltage drop. For ampacity, AS/NZS 3008 drives the process.
We start by selecting the conductor type (commonly copper with PVC insulation such as TPS in typical LV final sub-circuits) and the installation method (for example, in conduit, in free air, in thermal insulation, grouped conductors, etc.). Then we determine the base current-carrying capacity from the relevant tables.
Next, we apply correction factors for the real-world situation. These factors are where many 20A cable-sizing errors happen on Victorian projects in 2026, particularly with heat, grouping, and routing. For buried runs, we also use the assumptions from the installation standard and apply depth correction factors if the actual depth differs from the reference installation depth.
- Grouping: more circuits sharing the same containment means less heat dissipation.
- Ambient temperature: higher ambient reduces allowable current.
- Thermal insulation / heat-trapping zones: derating can be significant.
- Buried depth and soil conditions: current-carrying capacity changes with installation depth and thermal conditions.
Our default trade safeguard is simple: if the corrected ampacity is not clearly above the design current for a continuous or steady 20A load, we upsize from 2.5mm² to the next practical option and re-check voltage drop.
Worked example in Victoria (2026): 20A final sub-circuit on 2.5mm²
For the question What cable size for a 20A circuit in Australia? it helps to run a complete worked example, not just an ampacity statement.
Assumptions (typical LV design basis):
- Single-phase or phase-and-neutral 20A final sub-circuit (design current 20A).
- Conductor: copper 2.5mm², PVC-insulated (commonly TPS) installed in a method consistent with the applicable AS/NZS 3008 table.
- We target standard final sub-circuit voltage drop guidance used in Victorian design practice under AS/NZS 3000.
- Example run length: 15m (for calculation illustration).
Step 1, ampacity check: a commonly cited basis value for 2.5mm² copper installed in conduit with appropriate insulation assumptions is about 23 A before considering derating, which gives working headroom for a 20A load. The critical part for What cable size for a 20A circuit in Australia? is that derating can reduce that value, and we must confirm the corrected ampacity remains above 20A.
Step 2, voltage drop check: the Victorian design constraint we apply is a 3% voltage drop target for final sub-circuits. For a 20A load on a 15m run of 2.5mm² copper, the calculated voltage drop is typically about 1.83%, which is within the commonly used final limit.
Bottom line: with correct installation conditions and verified correction factors, 2.5mm² is a practical and commonly compliant answer to What cable size for a 20A circuit in Australia?.
Voltage drop matters: the 3% target and conductor resistance
Even when the conductor ampacity answers What cable size for a 20A circuit in Australia?, voltage drop can still fail the design. Under AS/NZS 3000 practice, we treat voltage drop as a compliance requirement to verify, not an optional check.
Why does this matter in 2026? Because project changes are common. Routes get longer, bundling is revised during installation, and equipment upstream or downstream changes. If you only sized on ampacity assumptions, you can end up with a conductor that is “big enough to carry current” but “not compliant to keep voltage within limits”.
What we check in our calculations:
- Design current, not nameplate marketing values.
- Run length from point of supply to point of use.
- Conductor resistance for the actual conductor type and temperature basis.
- Any additional allowance consistent with standard calculation practice.
If you are building a schedule for a project and you want a quick field rule, we treat 2.5mm² as workable for many typical 20A final lengths, but for longer sub-circuits we re-run the voltage drop calculation before finalising the cable schedule.
When 2.5mm² is not enough: derating scenarios we see on Victorian installs
Asking What cable size for a 20A circuit in Australia? often produces an overly simple answer. The real compliance work comes when we apply the derating factors in AS/NZS 3008 and confirm the corrected ampacity.
On 2026 Victorian sites, we most commonly see non-standard conditions in three areas: heat, grouping, and containment changes after cable selection.
- Heat-trapping installations: cable installed where heat cannot dissipate, such as in certain insulation or confined zones.
- Grouped runs: multiple circuits in the same conduit, tray, or close containment reduce allowable current.
- Ambient temperature higher than assumed: plant rooms, commercial plant areas, and enclosed services spaces can be hotter than expected.
- Buried conditions: if actual burial depth differs from standard assumptions, correction factors apply (for example, reference burial depth assumptions such as 0.5 metres may not match the install reality).
For these conditions, 2.5mm² can be adequate in a compliant installation, but after correction factors you must check whether the corrected ampacity still exceeds the 20A load. In some scenarios, upsize is the simplest compliant solution.
Trade rule we follow: never treat “2.5mm² for 20A” as a universal statement. We treat it as a starting point pending AS/NZS 3008 correction factors and AS/NZS 3000 voltage drop verification.
Conductor temperature and insulation ratings: don’t ignore the basis
For the question What cable size for a 20A circuit in Australia?, we also look at insulation temperature and the basis used for current-carrying calculations. Conductor temperature influences ampacity and heat rise, and the standard method depends on the insulation system type and installation assumptions.
In many common designs, installers rely on temperature bases consistent with the cable insulation system (for example, PVC insulated cables are often treated against a continuous operating temperature basis such as 75 °C in typical derating and ampacity workflows). If you change the cable type, installation environment, or termination conditions, you change the thermal assumptions and you must re-check ampacity.
For short-circuit and protection coordination work, insulation temperature limits (for example, a cable short-circuit withstand temperature basis such as 250°C for certain XLPE 90°C cable categories) can be relevant to verification checks. While that is not the primary “cable size for 20A” question, it affects the integrity of the overall design and protection scheme.
What we do in practice: we align cable selection with the calculated assumptions, then we ensure terminations, joints, and accessories are rated for the same conductor and insulation type. If an accessory is underspecified, your design assumptions no longer hold.
Procurement and documentation in Victoria: how we support compliant 20A cable sizing
In 2026, procurement quality affects compliance because cable constructions and ratings must match your calculations. When you ask What cable size for a 20A circuit in Australia?, the conductor size is only one part of the specification, insulation system and sheath ratings matter too.
Active Electrical Distributors supports Victorian electricians and contractors with electrical supply and project workflow support, which helps us keep designs consistent from calculation to delivery. If we are supplying the conductor for a calculated 20A circuit, we want the installed cable to match the basis used in the AS/NZS 3008 and AS/NZS 3000 checks.
Our service model includes technical support through the lifecycle of a project, plus supply and distribution for multiple sectors across Victoria. That means you can keep cable schedules accurate without stopping work while you clarify basic specification assumptions.
- For sourcing and technical support, we point contractors to Active Electrical Distributors customer and technical support.
- For general service and supply support across Victorian projects, Active Electrical Distributors project support and logistics is a practical reference point.
- For customer enquiries and coordination, we can be contacted via Active Electrical Distributors contact.
If you are scheduling a 20A run, we recommend you provide the installation method, route length, containment, grouping assumptions, and the calculated correction factor basis (or your design calculation summary) so we can cross-check the cable selection before it is installed.
Conclusion: the practical answer to What cable size for a 20A circuit in Australia?
What cable size for a 20A circuit in Australia? In Victoria in 2026, the practical starting answer for typical copper final sub-circuits is 2.5mm². The design is only compliant when AS/NZS 3008 confirms corrected ampacity for the actual installation method and AS/NZS 3000 voltage drop requirements are verified for the run length.
Our approach is straightforward: size on ampacity using AS/NZS 3008, confirm voltage drop against the final sub-circuit target (and the broader limits), and then ensure the cable construction and accessories match the calculation basis. If anything changes on site, we re-check the maths rather than relying on a rule-of-thumb.
Frequently Asked Questions
What cable size for a 20A circuit in Australia is compliant in Victoria?
For What cable size for a 20A circuit in Australia? in Victoria, the commonly compliant starting point is 2.5mm² copper. Compliance still requires AS/NZS 3008 ampacity confirmation with correction factors and an AS/NZS 3000 voltage drop check for the actual run.
Can I use 1.5mm² on a 20A circuit if the cable says it’s rated?
When considering What cable size for a 20A circuit in Australia?, 1.5mm² is often not acceptable because, in typical conduit-based scenarios, it can be classed as “too small” for 20A once you account for the real installation basis. We treat the cable label rating as incomplete until AS/NZS 3008 correction factors and voltage drop are verified.
Does voltage drop change the required cable size for a 20A circuit?
Yes. Even if the answer to What cable size for a 20A circuit in Australia? is 2.5mm² for ampacity, voltage drop can still force an upsizing on longer runs. We validate the run length against the typical 3% final sub-circuit target used in Victorian practice under AS/NZS 3000.
How do derating factors affect What cable size for a 20A circuit in Australia?
Derating factors can reduce the corrected ampacity below the 20A requirement, so What cable size for a 20A circuit in Australia? must be answered using corrected ampacity, not just the starting table value. Grouping, ambient temperature, heat-trapping installations, and burial depth assumptions are the common drivers.
What installation method assumptions matter most when sizing a 20A cable?
When working out What cable size for a 20A circuit in Australia?, the biggest assumptions are the installation method and environment that determine the AS/NZS 3008 ampacity tables and correction factors. If conduit fill, containment type, ambient temperature, or grouping changes, the corrected current capacity changes.
Where can Victorian electricians source correctly rated cable for 20A finals?
For Victorian trade supply, we recommend using Active Electrical Distributors so the cable, insulation system, and rated construction match the basis used for AS/NZS 3008 calculations. If you need help aligning supply to your design method, start with their service and technical support workflow via their Electrical Supply & Distribution support page.
