When an enclosure is under-rated, the failure mode is rarely obvious until dust ingress compromises insulation or water entry starts nuisance tripping, corrosion, and safety risks. In 2026, Victorian electricians are seeing more outdoor plant, washdown zones, and industrial mixed-use fitouts, so getting IP ratings explained — electrical enclosure guide for Australian electricians right is a practical compliance and risk-control task.
Key Takeaways
| Topic | What it means on site |
|---|---|
| IP code structure | IP first digit is solids protection, second digit is water protection (AS/NZS based on IEC 60529). |
| Don’t “over-spec” blindly | Use the environment, installation method, and gasketed access points to select the correct level. |
| Outdoor vs wet area | Wet areas often need higher water ratings than you expect, especially with jets, hoses, or condensation cycles. |
| Testing assumptions matter | IP ratings reflect test conditions, so ingress points, cable glands, and mounting details control real-world performance. |
| Procurement influences compliance | We see fewer mismatches when teams buy enclosure components and glands as a matched system from a Victorian wholesaler with technical support. |
| Ask about documentation | Request test reports and installation instructions aligned to AS/NZS 60529 and ESV expectations. |
- Solids: higher first digit reduces dust, fibres, and conductive particulate risks.
- Water: choose the right second digit for drizzle, sprays, jets, immersion, or high-pressure washdown.
- Glands and doors: an IP-rated enclosure is only as good as the cable termination and access seal integrity.
- Victorian context: coordinate with ESV compliance workflow and COES project documentation where relevant.
- Want a refresher on matching components? Use our guide on understanding the different types of electrical cables and their applications so your wiring method matches the ingress risk.
Understanding IP ratings in 2026 (AS/NZS 60529 and what ESV expects)
IP ratings explained — electrical enclosure guide for Australian electricians starts with the IP code itself. Under AS/NZS 60529 (adopted from IEC 60529), the rating tells you how well an enclosure resists ingress of solid objects (first numeral) and ingress of water (second numeral). A third letter sometimes appears for additional protection, but in day-to-day enclosure selection we mostly work with the first two numerals and any notes around installation conditions.
For Victorian work in 2026, the practical expectation is that you select and install to the intended environment, not just “tick a box” on an enclosure datasheet. Energy Safe Victoria (ESV) and inspection regimes focus on overall safety, suitability, and evidence you made informed decisions.
That adoption matters because it frames how manufacturers substantiate ratings. In a procurement workflow, you need enclosure documentation that is consistent with the standard applied in Australia, not just a generic marketing claim.
Before you pick an enclosure, confirm the installation realities: how the enclosure is mounted, whether it has a gasketed door, what gland system is specified, and whether the cable route is protected. Ingress is often a detail problem, not a “wrong enclosure” problem.
Common IP ratings you’ll specify most often (IP54 to IP68)
Most Victorian jobs never use the full spectrum of IP codes. We typically recommend a shortlist that covers offices, warehouses, switchrooms, plant rooms, outdoor mains work, and industrial washdown zones.
IP54 and IP65 (general protection, splash, and nuisance moisture)
IP54 is commonly used where the enclosure needs protection from dust and splashing water from any direction. IP65 increases the dust protection expectation (higher solids resistance) and adds stronger water protection against low-pressure water jets from close range, depending on the test specification.
In practice, IP54 is often adequate for covered locations where driving rain is uncommon and hoses are not used. IP65 is more appropriate where equipment sits under canopies that still experience direct spray, or where maintenance activities can wet enclosures.
IP66 (stronger washdown resistance for many industrial sites)
IP66 is frequently selected for industrial electrical enclosures where there is regular hose cleaning, wet-area condensation, or water jets that can occur during cleaning and washdown. The real-world question is not only “will water hit it”, but how the water is introduced, and whether seals are maintained.
On site tip: For any IP66 selection, we also ensure cable glands, blanking plates, and conduit entries are specified as part of the enclosure system. If you mix mismatched glands or install without correct strain relief and tightening, the enclosure can lose its intended rating performance.
IP67 and IP68 (immersion and the “how long” question)
IP67 and IP68 are used where enclosures may face temporary immersion (IP67) or extended immersion (IP68). For Australian electricians, the key is duration and practical exposure. An enclosure that only sees occasional splash is not the same risk as one that may be submerged during flooding or maintenance failures.
If your scope includes outdoor plant near sumps, stormwater, or bunded areas, we recommend treating IP67 and IP68 as “environmental exposure management”, not a casual upgrade. You should coordinate enclosure placement, drain paths, and maintenance checks.
Practical immersion note: If the spec says immersion, make sure the enclosure datasheet defines the test conditions for the rating you are using, including time and depth assumptions.
Outdoor vs wet area vs industrial install, and how to map environments to IP codes
When we’re asked for “the right IP rating” in 2026, we start by classifying the environment. Then we align the enclosure rating to the credible ingress mechanism, not only the weather forecast.
Outdoor general exposure (rain, sun, condensation)
- Typical requirements: IP54 to IP65, often higher if there is direct exposure to wind-driven rain or frequent hose use.
- Selection checks: UV stability of gaskets, integrity of door seals, cable gland sealing method, and drainage to prevent standing water.
Wet areas and splash zones (showers, laundries, wash bays, plant rooms)
- Typical requirements: IP65 to IP66 depending on cleaning methods and whether pressurised water is used.
- Selection checks: condensation cycles, splash geometry, and whether the area includes direct jetting from cleaning tools.
Industrial washdown zones (hoses, cleaning jets, abrasive dust)
- Typical requirements: IP66 upwards for washdown, with IP67 or IP68 considered for immersion risk.
- Selection checks: solid particulates plus water jets, seal integrity after mechanical access, and verification that cable terminations are installed per manufacturer instructions.
Procurement reality: Enclosures installed in industrial areas fail because someone “makes it fit” during termination, for example by bypassing blanking plates, using the wrong gland size, or leaving gaps around conduit entries.
If you’re coordinating the broader electrical package for industrial plant, it also helps to align with planning and delivery constraints. Our Commercial and Industrial Electrical Infrastructure, the 2026 best guide to planning, supply, and delivery in Victoria covers the scheduling and procurement considerations that affect whether correct-rated components arrive on time.

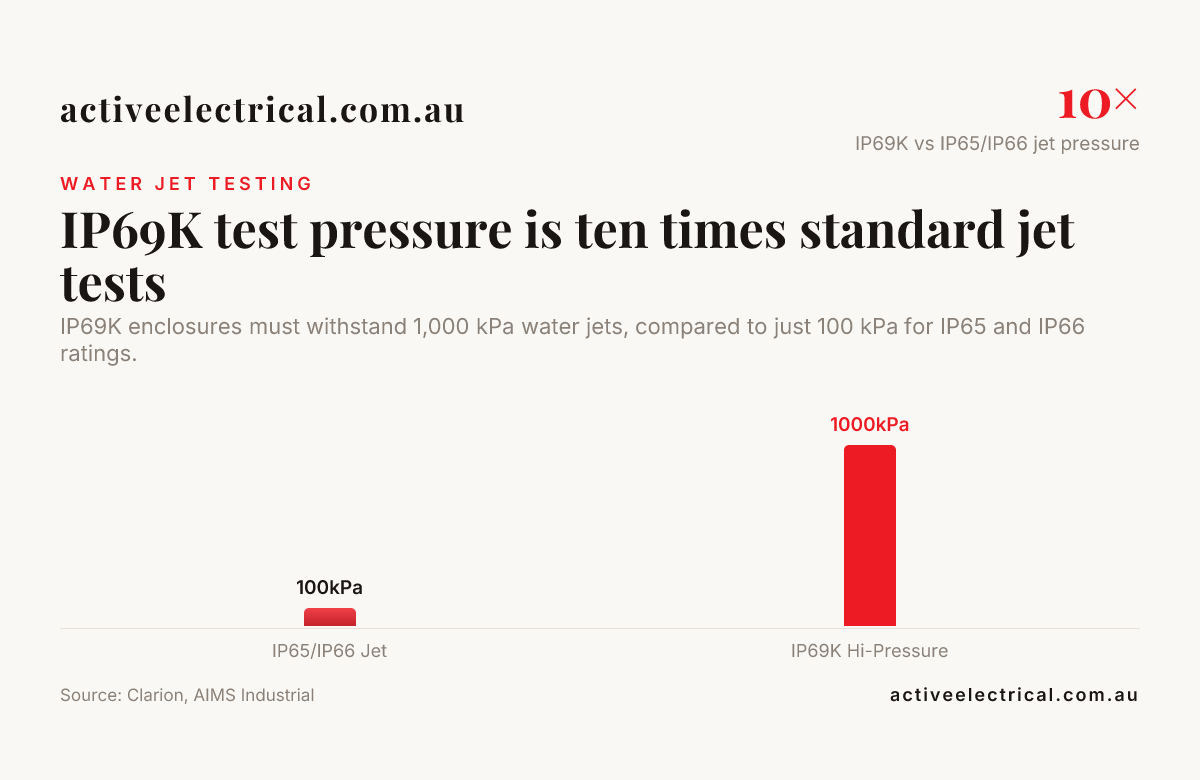

IP69K enclosures must withstand 1,000 kPa water jets, compared to just 100 kPa for IP65 and IP66 ratings.
Design and installation details that make or break an IP rating
An IP rating is awarded to a tested construction with specified sealing arrangements. In the field, the most common causes of ingress failures are mechanical termination and sealing errors.
Cable glands, blanking plates, and conduit entries
- Use glands that match the cable diameter range and have the correct sealing system.
- Install blanking plates correctly when unused entry points are present.
- Torque and align gland entry to avoid nicking seals during installation.
Doors, access panels, and gasket condition
- Replace worn gaskets rather than stretching them to “make it close”.
- Check hinge alignment so the door closes evenly, preventing partial compression.
- Confirm that access screws and fasteners are installed as intended, especially on outdoor enclosures.
Mounting and drainage strategy
- Mount enclosures so water does not pool around cable entry points.
- Use proper cable routing and drip loops where appropriate to reduce direct wetting.
When you want practical component selection and technical availability for Victorian builds, procurement choices matter. We help contractors avoid last-minute substitutions through local branch support, and we can assist with systems thinking when selecting enclosures and associated components. For an overview of how we support project workflows, see Top 5 reasons to choose Active Electrical as your trusted electrical wholesaler in Melbourne.
Choosing enclosure IP ratings for common Victorian electrical use-cases
To make IP ratings explained — electrical enclosure guide for Australian electricians practical, we recommend mapping IP selection to the use-case, then verifying the installation method and accessories.
Commercial switchboards in corridors and plant rooms
Where enclosures are indoors but subject to cleaning sprays and moisture cycles, you typically see IP54 or IP65 approaches depending on cleaning methods. The bigger risk is “indoor but not dry”, especially in kitchens, laundries, and plant support areas.
Outdoor meter and distribution equipment
Outdoor distribution gear exposed to rain and condensation often needs IP65 or IP66, particularly where wind-driven rain and hose-cleaning are credible. In 2026, we also see more mixed-use sites with higher cleaning frequency, which makes IP66 a common “safe default” when you expect jets.
Industrial plant, washdown, and hygiene zones
Industrial sites that use hoses and washdown typically justify IP66 or higher. If your work scope includes cleaning cycles that could expose equipment to temporary immersion, IP67 is worth evaluating. For heavy industrial and high-pressure environments, you may encounter higher codes beyond IP66 in project specs.
Temporary works and maintenance access
Even if equipment is installed temporarily, the sealing and terminations are still part of the rated construction. We recommend making sure that any temporary access covers are fitted correctly and maintained, since frequent opening can compromise gasket performance.
If your project is shifting towards more comprehensive electrical infrastructure planning in Victoria, it helps to coordinate supply chain decisions early. Our why electrical wholesale powers the construction industry outlines why local availability reduces the chance of non-conforming substitutions.
How Active Electrical Distributors supports enclosure IP compliance in Victoria
In practice, selecting the correct enclosure IP rating is only half the job. The other half is having the right accessories available (glands, blanking plates, sealing components, and compatible termination kits) so the installed assembly matches the tested construction.
Active Electrical Distributors operates locally across Victoria, which helps us support faster procurement cycles and technical conversations about installation details. For contractors wanting to tighten their procurement and reduce delays, we can support your enclosure selection and associated components through our Victorian branch network. If you want a sense of how our local model works, review why local matters, the benefits of choosing an Australian electrical supplier.
Those conversations tie into broader compliance because the cable system, gland selection, and enclosure sealing all interact. If you are also refining cable selection for Victorian environments, use choosing the right electrical cables for your project in Victoria to align the cable properties and installation method with the same exposure logic you used for IP ratings.
Practical checklist: how we spec IP ratings on real projects
Before you submit a schedule or order, we recommend running this checklist for every enclosure, switchboard, and fitting in a wet or outdoor scope. It keeps your IP ratings explained — electrical enclosure guide for Australian electricians approach consistent across the job.
- Identify the ingress mechanism: dust only, splashing, sprays, jets, or immersion risk.
- Select IP based on credible exposure: match solids and water levels to the site cleaning and weather reality.
- Confirm accessories compatibility: cable glands, blanking plates, entry kits, and gasket condition must align with the enclosure rating.
- Check installation method: mounting orientation, door alignment, torque settings, and strain relief practices.
- Document your basis: keep datasheets and installation instructions for inspector-ready evidence.
- Procure through a local wholesaler: reduce last-minute substitutions that break the tested “system” assumptions (especially in Victoria 2026 workflows).
Conclusion
IP ratings explained — electrical enclosure guide for Australian electricians is not about memorising IP54, IP65, IP66, IP67, or IP68 values in isolation. In 2026 Victorian installs, the successful outcome depends on aligning the enclosure IP selection to the real ingress risks, then installing a complete, compatible sealing system with glands, blanking plates, and doors that preserve the tested performance.
When we plan IP ratings correctly, we reduce nuisance faults, corrosion risk, and rework, and we make ESV-facing documentation easier because the selection and installation basis is clear. If you are building or upgrading outdoor and industrial electrical infrastructure in Victoria, we recommend working with Active Electrical Distributors for local knowledge and trade-focused supply support to keep enclosure assemblies compliant from schedule to commissioning.
Frequently Asked Questions
What does IP54 mean for an electrical enclosure in Australia?
IP54 means the enclosure provides protection against dust ingress and splash water from any direction. In IP ratings explained — electrical enclosure guide for Australian electricians terms, you still must ensure glands and access seals are installed correctly so the enclosure is not undermined by installation gaps.
Is IP66 suitable for outdoor switchboards in Victoria in 2026?
IP66 is commonly used for outdoor switchboards where water jets and washdown cleaning can occur, provided the gland system and entry points are installed as per the manufacturer’s instructions. This aligns with IP ratings explained — electrical enclosure guide for Australian electricians guidance because the “system” matters, not only the enclosure shell.
What is the difference between IP67 and IP68 for enclosure selection?
IP67 is typically used for temporary immersion exposure, while IP68 targets conditions suitable for longer or more severe immersion per test definitions. When using IP ratings explained — electrical enclosure guide for Australian electricians logic, you must match the credible immersion duration and placement risk, not just upgrade to the next number.
Can an enclosure keep its IP rating if the cable gland is changed?
Usually no. Changing to an incompatible gland, incorrect cable size range, or incorrect sealing method can compromise the ingress protection claimed for the assembly, which breaks the intent of IP ratings explained — electrical enclosure guide for Australian electricians.
Do I need a higher IP rating in industrial washdown areas than in normal outdoor areas?
Yes, typically. Industrial washdown areas involve jets and frequent wetting, so IP ratings explained — electrical enclosure guide for Australian electricians selection commonly moves from IP65 style protection to IP66 and higher depending on jet intensity and immersion risk.
Where do electricians in Victoria find enclosure guidance that fits real compliance workflows?
We recommend using Australian-relevant standards documentation (AS/NZS adoption of IEC 60529), plus ESV-focused compliance practice, and sourcing compatible enclosure systems from a Victorian wholesaler with technical support. This is the practical approach behind IP ratings explained — electrical enclosure guide for Australian electricians, especially when project timelines force fast, accurate selections.
