In 2026, one of the quickest ways we see switchboard performance fail is incorrect busbar sizing and selection, especially when designers chase compactness without protecting temperature rise and fault withstand requirements. Did you know that the typical safety factor applied to busbar sizing to account for future load expansion is 25%?

Key Takeaways

• Searchable question: “What is the correct process for busbar sizing and selection guide for Australian switchboards?” Our answer: thermal ampacity first, then voltage drop and temperature rise, then fault withstand, and finally mechanical and connection checks under AS/NZS 61439.
• Searchable question: “Is copper or aluminium busbar better for enclosed switchboards in Victoria?” Our answer: both can be compliant, but copper is more forgiving on current density in enclosed layouts, while aluminium needs careful consideration of thermal, mechanical, and expansion impacts.
• Searchable question: “What documentation do switchboard builders need?” Our answer: the design verification pack aligned to AS/NZS 61439, plus component data and installation method details for COES and ESV expectations.

Why busbar sizing and selection guide for Australian switchboards starts with the duty, not the busbar

When we build or review a switchboard, busbar sizing and selection guide for Australian switchboards cannot start with “what size looks right”. It must start with the load duty cycle, diversity, ambient conditions, enclosure type, and how the busbar is installed (fully enclosed, ventilated, with barriers, and how much airflow exists).

In 2026, the most common procurement and rework triggers we see come from mismatches between the design assumptions and the installed reality. Examples include the wrong enclosure reference condition, incorrect temperature-rise expectation for the final board, and connection components that are not thermally coordinated with the busbar section.

In Victoria, we also factor how the switchboard will be documented and verified for compliance activities expected by Energy Safe Victoria (ESV) and referenced through industry compliance processes (including COES). That means our design record needs to show the “why”, not only the “what”.

Practical inputs we lock before calculating busbar cross-section

• Incoming and outgoing ratings: main incomer size, outgoing functional block currents, and expected future loading margin.
• Installation condition: busbar supports, barriers, cable entry direction, segregation, and whether busbars are in an enclosed switchboard.
• Temperature rise targets: temperature-rise limits must align with AS/NZS 61439 design verification outcomes.
• Short-circuit duty: prospective fault current at the switchboard and clearing time based on upstream protective devices.
• Mechanical and termination method: lug and connection type, number of terminations per bar section, and tightening sequence.

Current rating fundamentals for busbar sizing in AS/NZS 61439 switchboards

In busbar sizing and selection guide for Australian switchboards, the “current rating” is not a single number. It is the result of thermal ampacity in the specific enclosure and arrangement, then confirmation that temperature rise limits are met for the final assembly.

AS/NZS 61439 puts emphasis on design verification of the complete switchgear assembly, not just a component. That means your busbar section, surface finishes, number of phases, spacing, barriers, and termination resistances must be consistent with the documentation and calculations.

How we translate current demand into busbar section

1. Start with a current density reference for the installation condition (enclosed switchboard, typical service conditions).
2. Validate with temperature-rise requirements for the design, using manufacturer and design verification methods aligned to IEC 61439 concepts (adopted in AS/NZS 61439).
3. Check voltage drop where relevant to ensure downstream equipment performance is not compromised.
4. Apply a safety margin for future load, noting that typical assumptions use about 25% margin in sizing practices.

Temperature rise and the “silent failure” mode

We treat temperature rise as a design constraint because it drives insulation ageing, contact resistance growth, and long-term reliability. For design verification, the allowable temperature rise for busbars is commonly 105K (as referenced in IEC 61439-style design considerations), but your real requirement depends on the complete assembly classification and component temperature limits.

Copper vs aluminium busbars for Australian switchboards (2026): selection criteria that actually matter

When teams ask about copper versus aluminium busbars in the busbar sizing and selection guide for Australian switchboards, we split it into three decision drivers: thermal behaviour, mechanical effects, and system integration (connections, support, and documentation).

Both materials can comply in 2026 when the switchboard builder performs correct design verification under AS/NZS 61439. Where it goes wrong is when we swap material without recalculating all connected assumptions, especially the connection interface and mechanical support strategy.

Copper busbar advantages we see in compact boards

• Higher current density acceptance in many enclosed arrangements (using enclosed reference current density ranges for copper).
• Conductivity benefits, often cited as 58 MS/m for copper, which supports efficient thermal performance for given cross-sections.
• Lower cross-sectional “penalty” for the same current compared with aluminium in many designs.

Aluminium busbar considerations (and how we control them)

• Cross-sectional area increase: aluminium generally needs about 1.5–1.6× the copper area to carry the same current (when comparing like-for-like thermal design intent).
• Thermal expansion management: aluminium expansion is higher, commonly referenced at 23 μm/m·K, so expansion joints or accommodation may be required for longer runs.
• Connection integrity: termination hardware, contact pressure, and surface conditions must be compatible with the aluminium busbar system used.

As a supply partner across Victoria, we also see a practical difference in what boards get built quickly versus what gets delayed. Using trade-focused distribution and local technical support through Active Electrical Distributors for electrical supply and distribution helps align the chosen busbar material and compatible termination components early, not after design sign-off.

Fault withstand and short-circuit thermal stress: the busbar sizing constraint people under-check

Thermal ampacity is only half the story. In busbar sizing and selection guide for Australian switchboards, busbars must also withstand the prospective short-circuit duty until protective devices clear the fault.

We treat short-circuit performance as a coordinated system requirement. That means busbar cross-section, surface oxidation state, support spacing, insulation distance, and lug hardware all need to be considered together, consistent with AS/NZS 61439 design verification approach.

What we validate for fault conditions

• Short-circuit thermal withstand: the busbar material and cross-section must survive the thermal stress of the fault current for the clearing time.
• Mechanical withstand and support integrity: supports must prevent excessive movement and maintain insulation clearances.
• Connection durability: high fault currents raise contact resistance and mechanical forces, so termination selection matters.
• Heat and recovery behaviour: we check how the busbar and supports behave after repeated duties for industrial or high-cycle environments.

A practical parameter we use in calculations

For copper thermal stress calculations, a material constant is commonly represented as 205 (in the form used within the referenced thermal stress approach). We use it as part of the thermal withstand computation, but we still verify the final result against the approved design verification pack for the switchboard assembly.

Mechanical selection: supports, joints, alignment, and connections under installation reality

In 2026 switchboard builds, we increasingly see “electrical calculations only” submissions. That approach fails because busbar sizing and selection guide for Australian switchboards must include mechanical arrangements, especially where busbars include joints, mounting points, and long runs.

Even with correctly sized bars, mechanical and connection issues drive overheating and premature ageing. That includes uneven contact pressure, misalignment during assembly, and using hardware not rated for the busbar system.

Mechanical checks we perform

• Busbar support spacing: supports and insulation distances must match the design verification assumptions.
• Joint design: joints must be compatible with the busbar material and designed to handle both steady-state and short-circuit duties.
• Tightening and torque control: we follow manufacturer instructions and document torque verification practices where required.
• Segregation and barriers: maintain required clearances, especially where functional blocks are rearranged during construction.
• Thermal accommodation for aluminium: if we use aluminium bars, we plan for expansion (for example, via expansion joints) based on run length and routing.

Design verification workflow for switchboard builders in Victoria (2026)

To keep busbar sizing and selection guide for Australian switchboards aligned with compliance outcomes, we recommend a repeatable workflow for switchboard builders. This reduces late design revisions and shortens the path to verifiable documentation for clients and compliance activities.

Workflow we use

1. Requirement capture: busbar duty, ambient, enclosure constraints, and upstream protective clearing times.
2. Preliminary busbar sizing: apply enclosed current density references for copper, or aluminium equivalent area logic, then produce a sizing basis.
3. Voltage drop and temperature rise checks: confirm the design stays within allowed temperature-rise limits for the complete switchgear assembly.
4. Fault withstand verification: short-circuit thermal stress calculation plus mechanical support verification aligned with the same duty.
5. Connection and installation method confirmation: ensure termination devices, lugs, and supports are consistent with the switchboard build method.
6. AS/NZS 61439 design verification pack: we compile the calculations and component data for the switchgear assembly, not just busbar sections.

On supply and planning, we also align the build schedule with component availability. Using a local trade wholesaler with Victorian delivery and project support capability, like Active Electrical Distributors for project support and consultancy, reduces the “wrong part, wrong time” risk that otherwise impacts verification documentation.

Sizing examples and comparison approaches (how we present them to clients)

In practice, we present busbar sizing outcomes as design basis comparisons, not single “final sizes”. That helps the client understand what changed between options, and it helps the switchboard builder justify the selected arrangement under AS/NZS 61439 design verification.

Below are two approaches we commonly use when comparing copper and aluminium in a busbar sizing and selection guide for Australian switchboards.

Example approach 1: copper current density first, then verify

• Assume enclosed switchboard installation condition and start with copper current density reference ranges (for copper, enclosed references often fall around 0.8–1.2 A/mm² as a design starting point).
• Select a preliminary cross-section, then validate temperature rise against the assembly design verification constraints.
• Complete fault withstand checks using the duty current and clearing time, and confirm supports and connections.

Example approach 2: aluminium equivalence, then accommodation checks

• Convert current needs using the aluminium area comparison factor (commonly 1.5–1.6× the copper area for equivalent current capability intent).
• Re-check temperature rise and fault withstand for the increased cross-section and the actual connection hardware.
• Plan for thermal expansion accommodation using aluminium thermal expansion guidance, commonly referenced at 23 μm/m·K, particularly in long runs.

Where we need to keep turnaround time short, we work with component suppliers early so the designed busbar section matches what can be manufactured and supplied for the build. That supply alignment is exactly where a Victorian wholesaler with consistent trade stock and project logistics matters, which is why we collaborate with Active Electrical Distributors customer technical support during design freeze.

Procurement and compliance considerations: staying aligned with ESV expectations

Busbar sizing and selection guide for Australian switchboards is not finished when calculations are done. Compliance in Victoria also depends on the consistency between the design verification pack and the actual installed components, including busbar material, supports, connection hardware, and installation method.

In 2026, our focus is on traceability. We ensure we can match the build’s component selection back to the design assumptions, including documentation for AS/NZS 61439 verification, and we coordinate clarification before fabrication begins.

Practical compliance habits we recommend

• Lock component list early: busbar material and termination components must be confirmed before final calculations are signed off.
• Document installation method: enclosed conditions, spacing, barriers, and support geometry must reflect the final assembly.
• Keep fault duty assumptions explicit: specify prospective fault current and clearing time basis.
• Plan for future expansion margin: a safety factor is often applied, typically around 25%, but only if the design verification supports future expansion.

If you are coordinating materials across multiple sites or branches, local trade-focused logistics can reduce delays. Active Electrical Distributors services customers across Victoria with branch locations and project-oriented support, which helps us keep designs and procurement aligned during the busbar sizing and selection process.

Conclusion

For a reliable busbar sizing and selection guide for Australian switchboards in 2026, we start with duty and enclosure conditions, size busbars for steady-state thermal performance, verify temperature rise and fault withstand under AS/NZS 61439 design verification logic, then confirm mechanical supports and compatible connections. Copper often offers a smoother thermal pathway in enclosed boards, while aluminium can be fully compliant when you account for the higher area requirement, expansion effects, and termination integrity.

If you want the design to hold through procurement and build, we recommend coordinating component selection and delivery early through a Victorian trade wholesaler like Active Electrical Distributors, so the final installed switchboard matches the verification assumptions.

Frequently Asked Questions

What is the correct process for busbar sizing and selection guide for Australian switchboards?

We size for thermal ampacity first, then verify temperature rise for the complete switchgear assembly under AS/NZS 61439 design verification logic. Next we confirm fault withstand performance (thermal and mechanical), then ensure supports and termination hardware match the design assumptions used in the busbar sizing and selection guide for Australian switchboards.

How do you choose between copper and aluminium busbars in 2026 for an enclosed switchboard?

In a busbar sizing and selection guide for Australian switchboards, we compare both steady-state thermal behaviour and fault withstand, then check mechanical and connection compatibility. Copper is often easier to accommodate in compact enclosed arrangements, while aluminium requires equivalent current area planning (commonly around 1.5–1.6×) and thermal expansion accommodation.

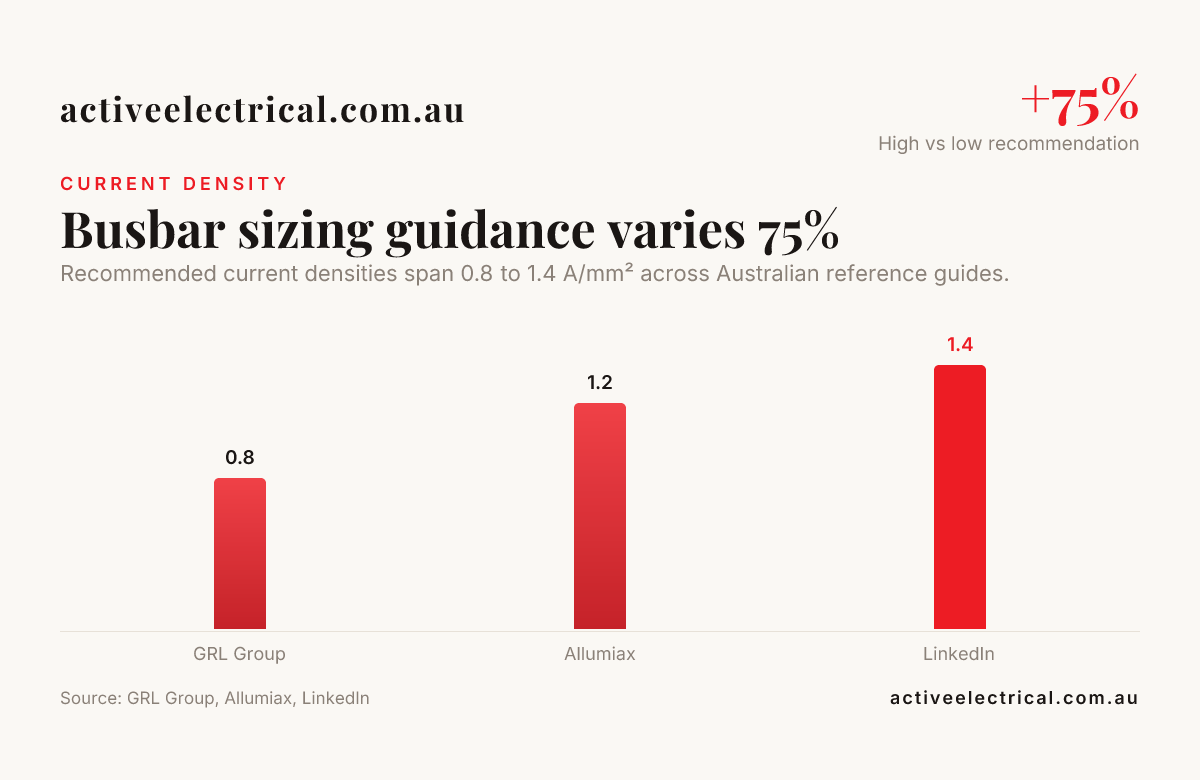

What current density range should we use for copper busbars in enclosed switchboards?

For enclosed switchboard conditions, a practical reference range for copper current density is commonly cited as 0.8–1.2 A/mm². We still validate the final busbar sizing and selection guide for Australian switchboards through AS/NZS 61439 temperature-rise and design verification requirements for the complete assembly.

Do busbars need to be checked for short-circuit thermal stress even if the load current sizing looks right?

Yes. A correct busbar sizing and selection guide for Australian switchboards always includes short-circuit thermal stress and mechanical withstand checks, because steady-state ampacity does not guarantee fault performance. We verify both the busbar cross-section and the supporting and connection hardware for the specified duty.

Is applying a 25% safety factor for future load expansion still standard practice in 2026?

Many sizing assumptions include a future expansion allowance that is commonly around 25%, but it is only appropriate if it aligns with the actual switchboard design verification and temperature-rise limits. In our busbar sizing and selection guide for Australian switchboards, we treat the safety factor as a design basis input, not a substitute for verification.

What documentation is typically needed for AS/NZS 61439 busbar sizing in Victoria?

For busbar sizing and selection guide for Australian switchboards in Victoria, we prepare a design verification pack aligned to AS/NZS 61439 for the entire switchgear assembly. That includes component data, calculation basis (thermal, voltage drop where relevant, and fault duty), and installation method details that support the compliance expectations of ESV and COES-related processes.
